Precision Casting Tray



Product Name: Tray

Material: 1.4849

Dimensions: Φ850 x 92 mm

Unit Weight: 62 kg

Manufacturing Process: Precision Casting

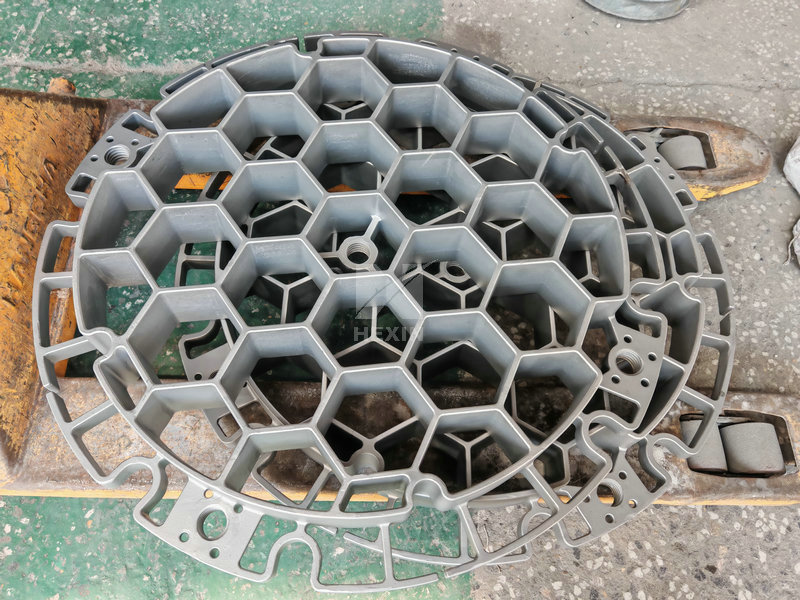

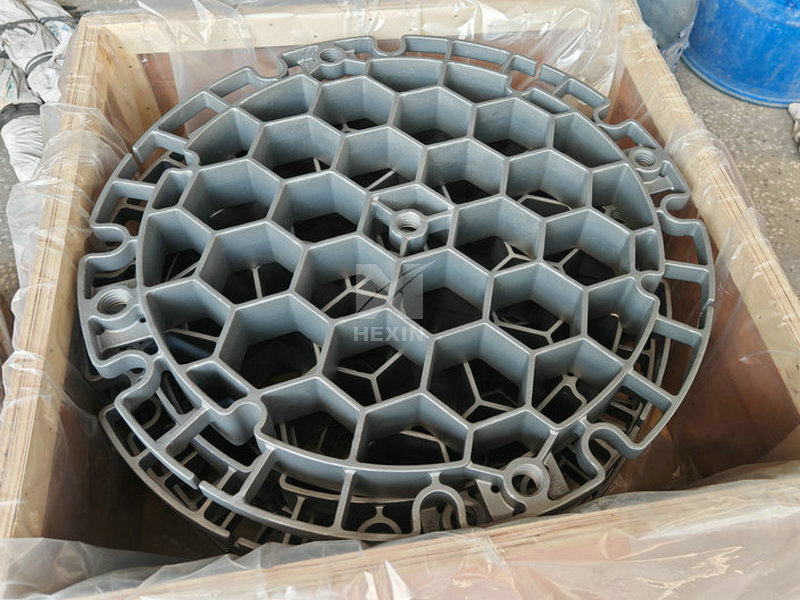

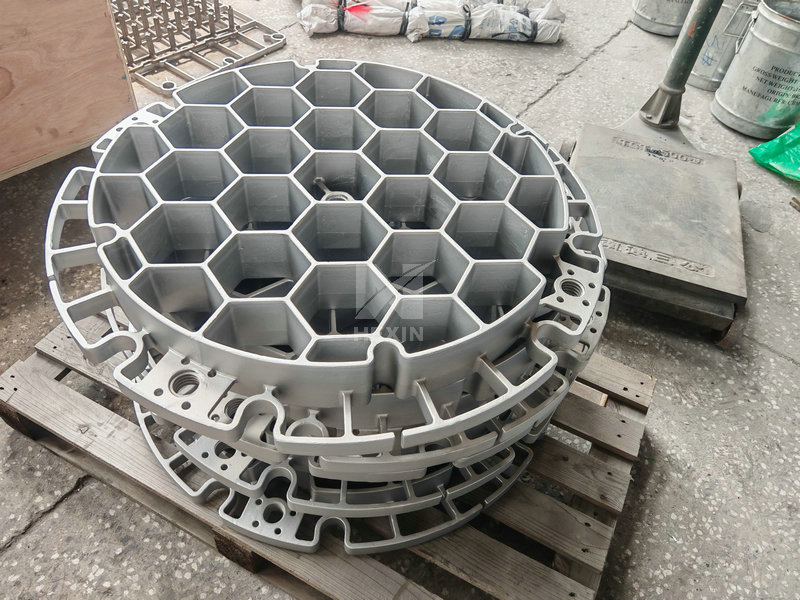

The image shows a precision-cast tray recently manufactured to specifications of Φ850 x 92 mm. Made from 1.4849 material, it was produced using the silica sol precision casting process. The tray features a design that is thicker in the center and thinner at the edges; precision casting ensures dimensional accuracy and resistance to deformation for this configuration. Additionally, the 1.4849 material withstands the aggressive carburizing and carbonitriding atmospheres found in heat treatment furnaces, resulting in a significantly extended service life for the fixture. This batch of trays passed quality inspection and has been packed and shipped.
