U-type Radiant Tube made of 1.4848



Product Name: U-type Radiant Tube

Material: 1.4848

Dimensions: ⌀168/⌀154 x 2360 mm

Unit Weight: 193 kg

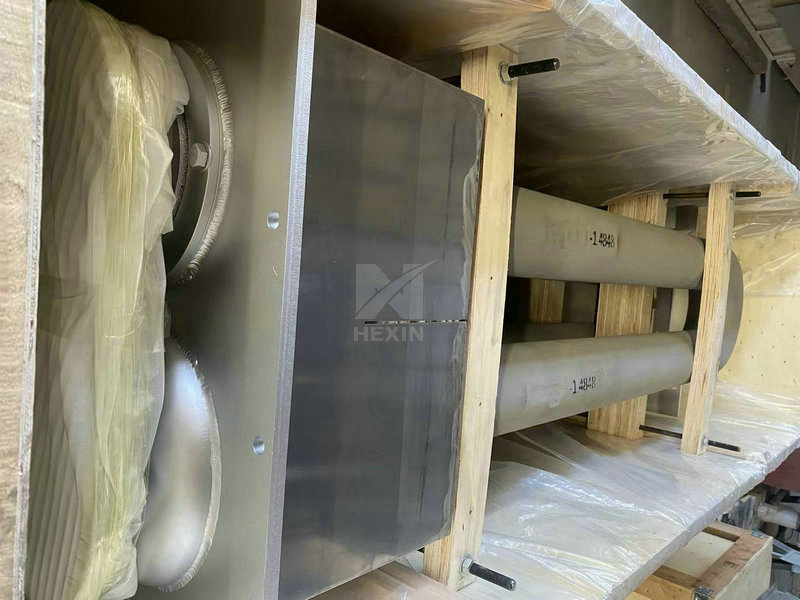

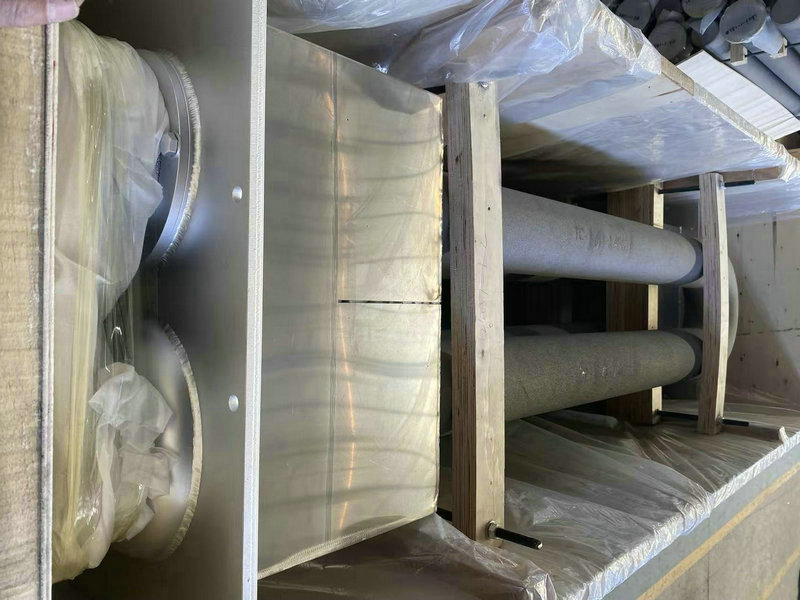

The image shows a batch of U-type radiant tubes completed this month. Measuring ⌀168/⌀154 x 2360 mm and weighing approximately 193 kg, these tubes are made of 1.4848 material. The main body is produced via centrifugal casting, while the bottom section is investment cast; the components are subsequently assembled and welded together. The products have passed inspection, meeting all customer specifications, and have been shipped. Centrifugal casting is the primary manufacturing process, allowing for the production of tubes with various diameters and wall thicknesses. We regularly supply radiant tubes in a range of sizes and offer manufacturing based on provided drawings or custom specifications.
