Investment Casting Trays



Product Name: Investment Casting Trays

Material: 2.4879 Gel

Dimensions: 900*600*40 mm, 900*600*30 mm

Weight: 42 kg, 32 kg

Manufacturing Process: Precision Casting

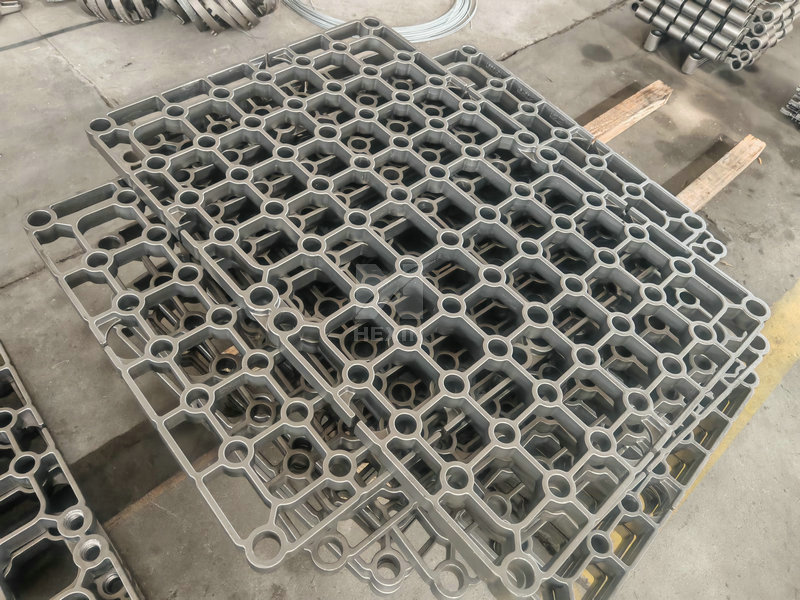

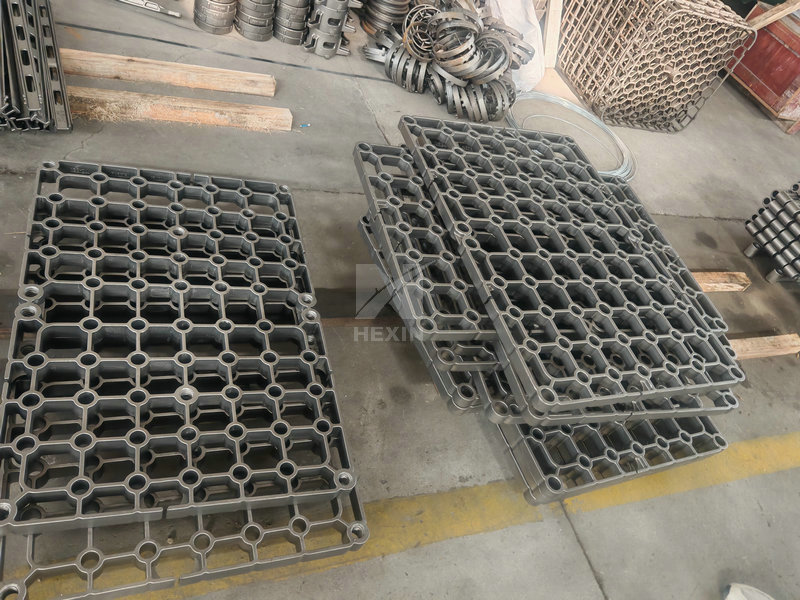

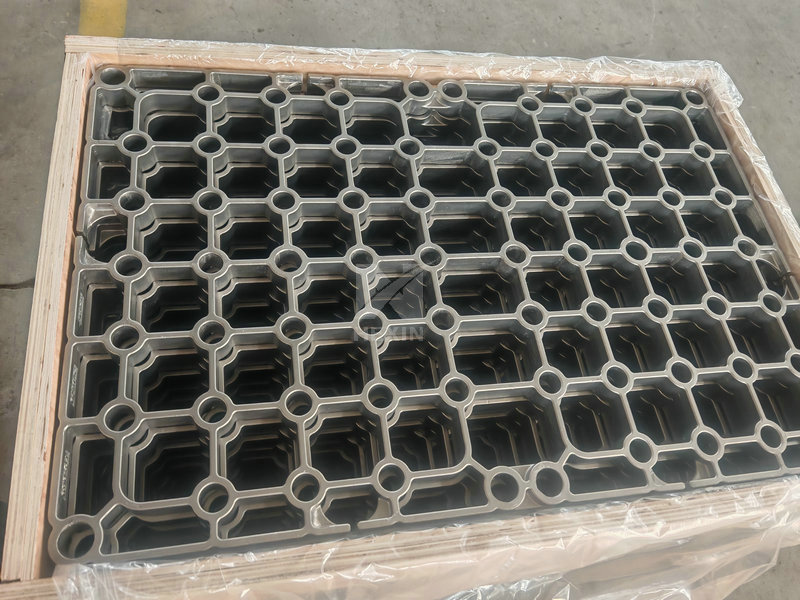

The image shows a Investment Casting Trays and intermediate grate from a recently completed heat treatment fixture. The main dimensions are 900*600*40 mm and 900*600*30 mm, made of 2.4879 Gel, and weighing 42 kg and 32 kg respectively. Manufactured using silica sol precision casting, the Investment Casting Trays, intermediate grate, and upright spacers are combined to form the heat treatment fixture. Precision casting of this fixture offers advantages such as precise dimensions, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.
