Intermediate tube sheet, tube support
Name: Intermediate tube sheet, tube support
Material: ASTM A560 50Cr-50Ni-Nb, ASTM A297 HF
Size: 2640*1748.5*360mm, 2640*1205.5*230mm, 270*220*160mm, 150*130*100mm
Single Weight: 2086KG.744kg, 27kg, 3.2kg
Production process: static casting, precision casting

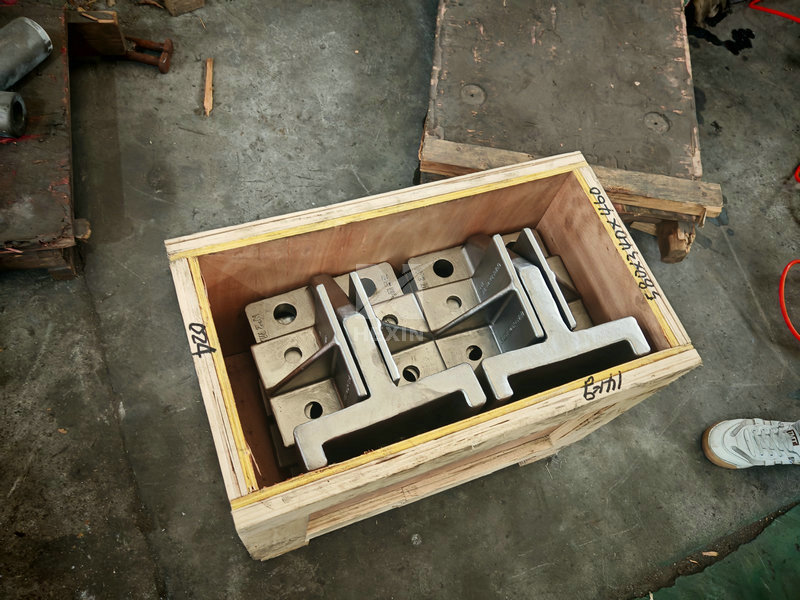

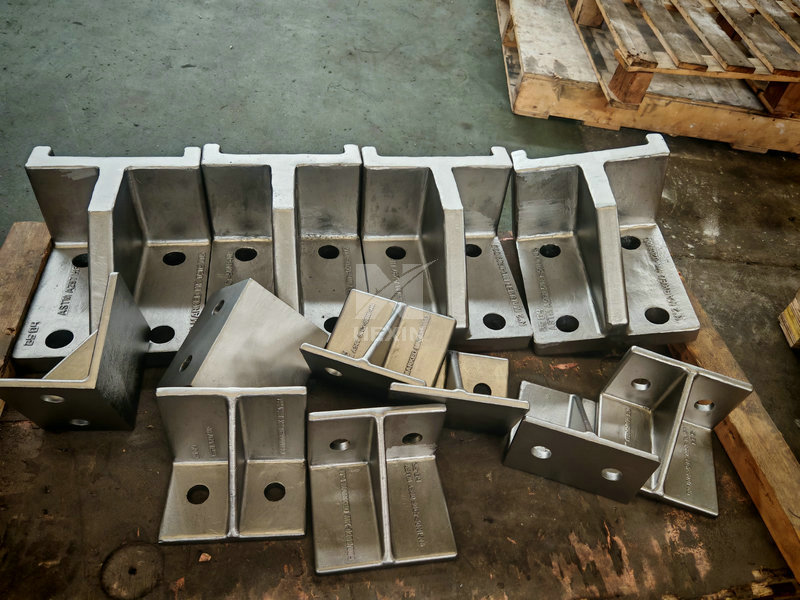

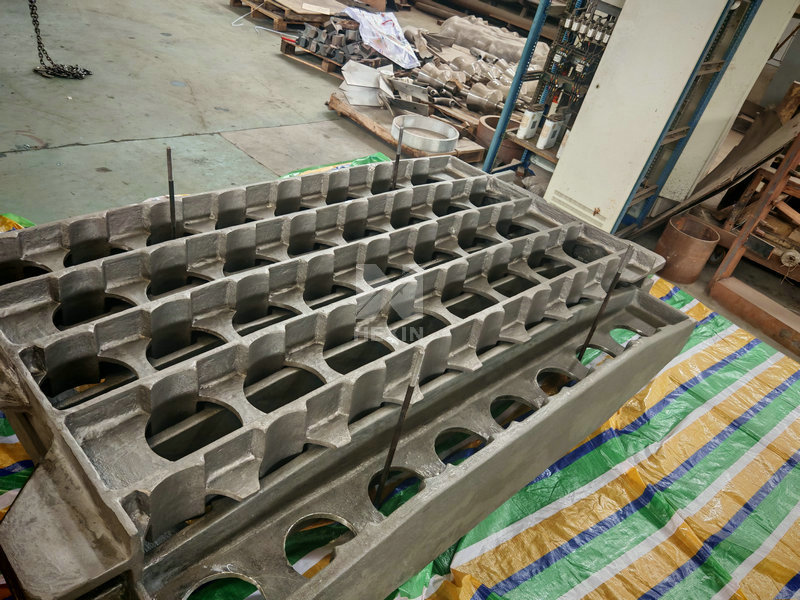

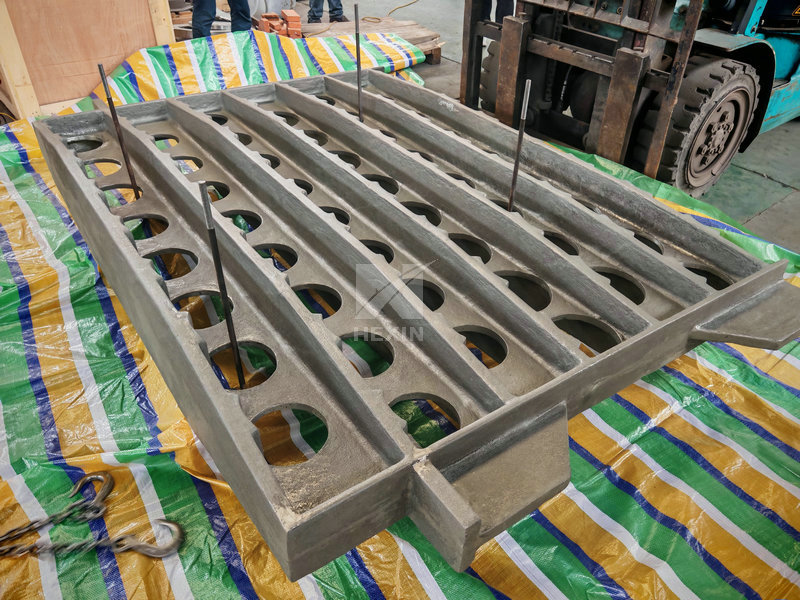

Picture of the recently finished intermediate pipe plate and accompanying rails, tube supports, dimensions 2640*1 748.5*360mm, 2640*1205.5*230mm, 270*220*160mm, 150*130*100mm, single weight 2086KG.744kg, 27kg, 3.2kg Material: ASTM A560 50Cr-50Ni-Nb, ASTM A297 HF Middle tube plate using static casting process production, guide rail and rack using silicone solder precision casting process students Production. The pipe plate is used for the support of radiation tubes, catalyst tubes and other pipe segments in the furnace, with good high temperature resistance properties . The batch of pipe plate drinking rack has been packed and shipped after passing other testing experiments by the quality inspection department.
